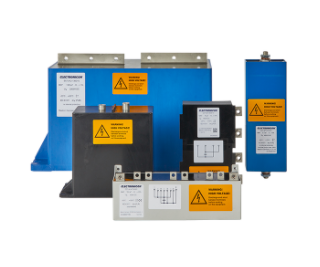

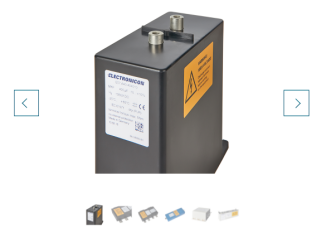

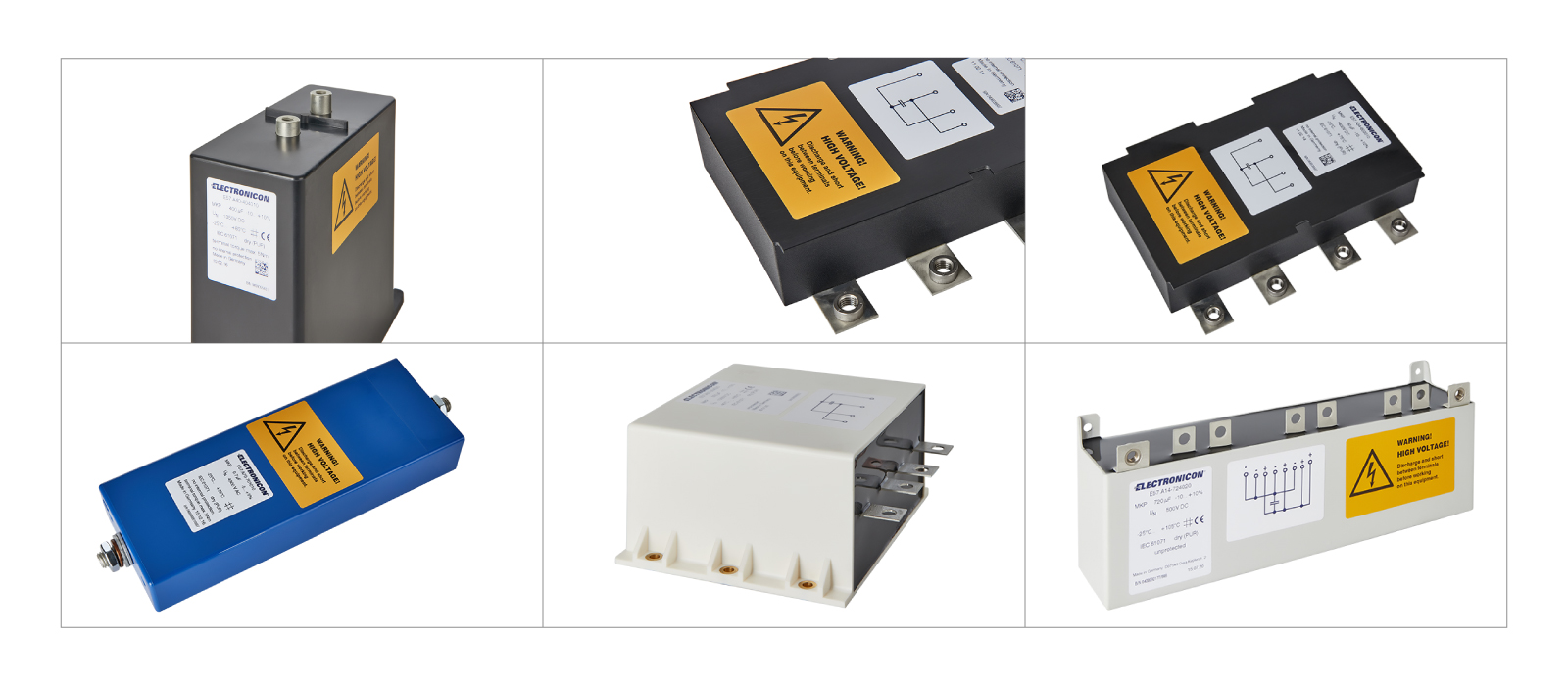

E57 Series 系列

DC capacitors for applications of electric mobility

Our E57 range offers both standard solutions and special designs which meet the geometric and electrical requirements of your application. The connection is made via low-inductance copper lugs which, depending on your specification, can vary in number, size and position. The housing is made of plastic that is rated UL:V0; it contains compact and stable cylindric winding elements, connected in parallel for maximum current strength and minimal self-inductance. Flame retardancy and protection against environmental influence are ensured by the PU resin filling and a UL:V0-compliant cover resin. Our highly reliable SecuMet™ film guarantees proper self-healing even under extreme operating conditions. For example, E57 capacitors can be operated at ambient temperatures of up to 105°C and are suitable for applications in the automotive industry and other critical sectors.

用于电动车的直流电容器

E57 系列，可提供标准的解决方案，也可按照您的尺寸和电气使用要求提供特殊的设计。连接通过低电感的铜接线片进行，根据您的规格，其数量、尺寸和位置可能有所不同。外壳由符合 UL:V0等级的塑料制成，采用紧凑和稳定的圆柱形绕组元件，并联连接以获得最大的电流强度和最小的自感。PU树脂填充物和 UL:V0标准的覆盖树脂，确保了阻燃性和对环境影响的保护。高度可靠的SecuMet™金属化技术，确保薄膜即使在极端的运行条件下，也能适当地自愈。例如， E57 系列电容可在高达105°C的环境温度下运行，适于汽车工业和其它敏感领域的应用。
