Universal AC/DC capacitors with internal safety device
带内置安全保护装置的AC/DC通用电容器
Our protected AC capacitors are suitable for DC applications as well. Thanks to SecuMet™, we can go far beyond the AC peak value.
带保护的交流电容器也适用于直流应用。凭借 SecuMet™金属化薄膜，我们可以超越交流峰值。
Detailed description (please consult for model parameters)
详细描述（型号参数请咨询）
In modern applications of power electronics, capacitors are among the most critical links in the chain of components when it comes to long operating life, safety and reliability of operation.
Decades of proprietary ELECTRONICON experience in metallizing capacitor films and designing high-end capacitors have created our very own Know-How, for instance in special metallizing patterns, our SINECUT slitting technology and optimized winding geometries. This enables us to design power capacitors with a high specific ratio of capacitance to volume, high AC-voltage load capacity and outstanding suitability for high rms and surge currents.

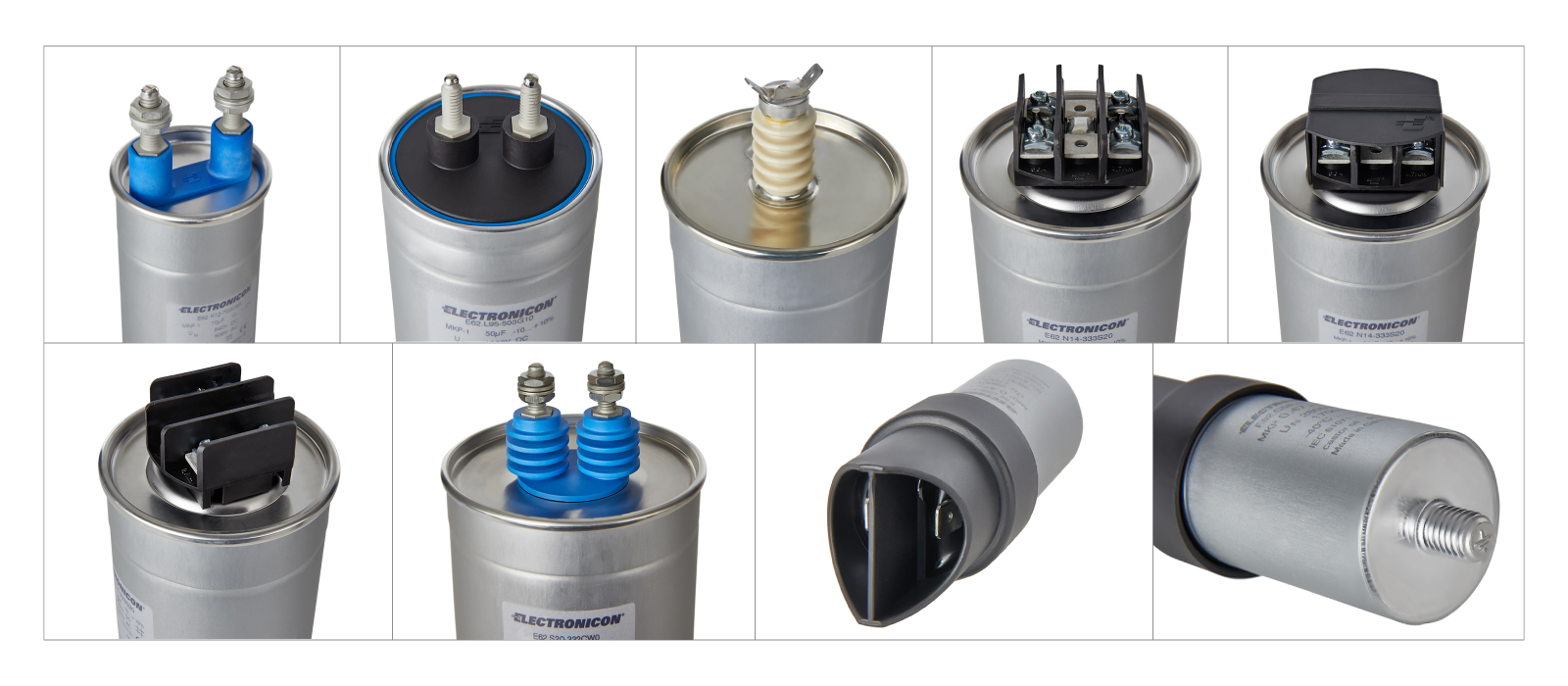

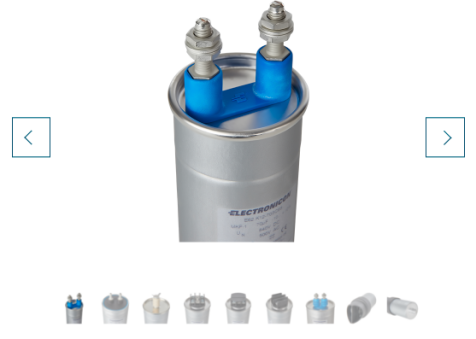

The cylindrical capacitors of our universal AC/DC series "E62" are perfect for non-sinusoidal voltages and pulsed currents. The low loss factor of our MKP dielectric compensates to a large extent for the losses caused by the non-sinusoidal voltages. Moreover, the SecuMet™ metallization also enables permanent loading with DC voltages which by far exceed the peak value of the nominal AC voltage.
The E62s are housed in a hermetically sealed aluminium can which is filled with environmentally friendly plant oil as standard; optionally many of them can also be made available with a filling of inert gas. The gas filling is not only environmentally friendly, but also permits mounting in any position, while the oil-filled capacitors should - for electrical as well as environmental considerations - always be mounted vertically.
The excellent self-healing characteristics of our film metallization and the autonomous overpressure protection (“BAM”) ensure safe operation and controlled disconnection in the event of overload or failure at the end of operating life.
在电力电子的现代应用中，对于较长使用寿命和运行的安全和可靠性来说，电容器是组件链中关键的环节之一。
ELECTRONICON在电容薄膜金属化和高档电容设计方面数十年来的独特经验，形成了我们的专有技术，如独特的电容薄膜蒸镀方案、SINECUT薄膜分切技术和优化的元件几何分布设计。这使我们设计的电容具有很高的容量体积比、 强大的电压负载能力和耐受有效值及浪涌电流的冲击能力。
"E62"AC/DC通用系列的圆柱形电容，非常适合非正弦波形电压和脉冲电流。MKP电介质的低损耗因子在很大程度上补偿了非正弦波形电压引起的损耗。而SecuMet™金属化技术，也使电容能够长期承受远远高于额定交流电压峰值的直流电压。
E62系列电容封装在铝外壳中，内部填充环保植物油。也可填充惰性气体。充气电容不仅环保，而且可以任意角度安装。而充油电容则由于电气和环保技术原因，应始终垂直安装。
薄膜金属化的出色的自愈特性和自主过压力保护装置(“BAM”)，确保电容器安全运行、以及在过载或使用寿命结束发生故障时受控地断开。
